Rosenberger FAKRA Connectors

Product Overview

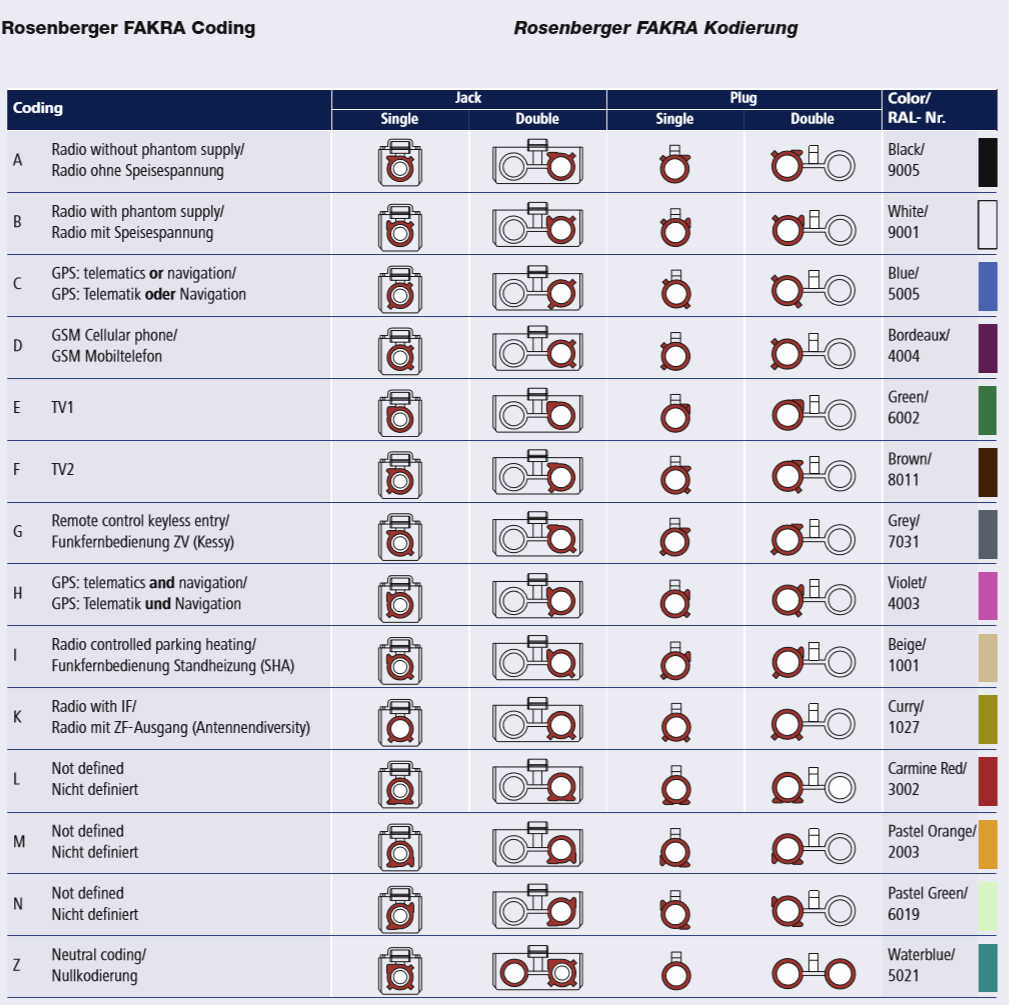

Rosenberger FAKRA* connectors have been especially designed to fulfill the tough requirements of the automotive industry. A comprehensive coding system offers 13 mechanical and colored codings (A to N) and one neutral coding (Z = waterblue) for modern automotive applications, e.g. GPS, keyless entry, GSM mobile radio or RF Bluetooth applications.

FAKRA connectors according to – ISO 20860-1 & -2 – USCAR 17 & 18

Product range
– Cable connectors, straight and right angle – FAKRA* SF** connectors – 360° turnable right angle connectors – PCB connectors for “pin-in-paste”-soldering process and SMD-types – Panel connectors – Connector types: single and multi connectors, male and female types, straight and right angle types – Waterproof connectors – Calibration kit – Tools

Product Features

– Standardized FAKRA cavity, compatible with stamped and formed connectors as well as turned connectors – Temperature range from -40° C to +105° C – Primary and secondary locking systems lead to high assembling security – RoHS-, WEEE-, ELV Conformity

xRosenberger No. Remarks Sales Unit x59 Z 063-000-y with secondary locking -y: please fill-in requested coding 250
x59 Z 113-000-y with secondary locking -y: please fill-in requested coding
500
x59 Z 073-001-y without secondary locking -y: please fill-in requested coding
500
x59 Z 073-C00-y without secondary locking with slot positioning clip -y: please fill-in requested coding
500
59 Z 115-000-y with secondary locking -y: please fill-in requested coding
200
x59 Z 067-000-y without secondary locking -y: please fill-in requested coding
250
x59 Z 067-C00-y without secondary locking with slot positioning clip -y: please fill-in requested coding
250

x59 Z 017-000-y with secondary locking -y: please fill-in requested coding
150

Center Contact
Crimp Insert Outer Contact
Sales Unit

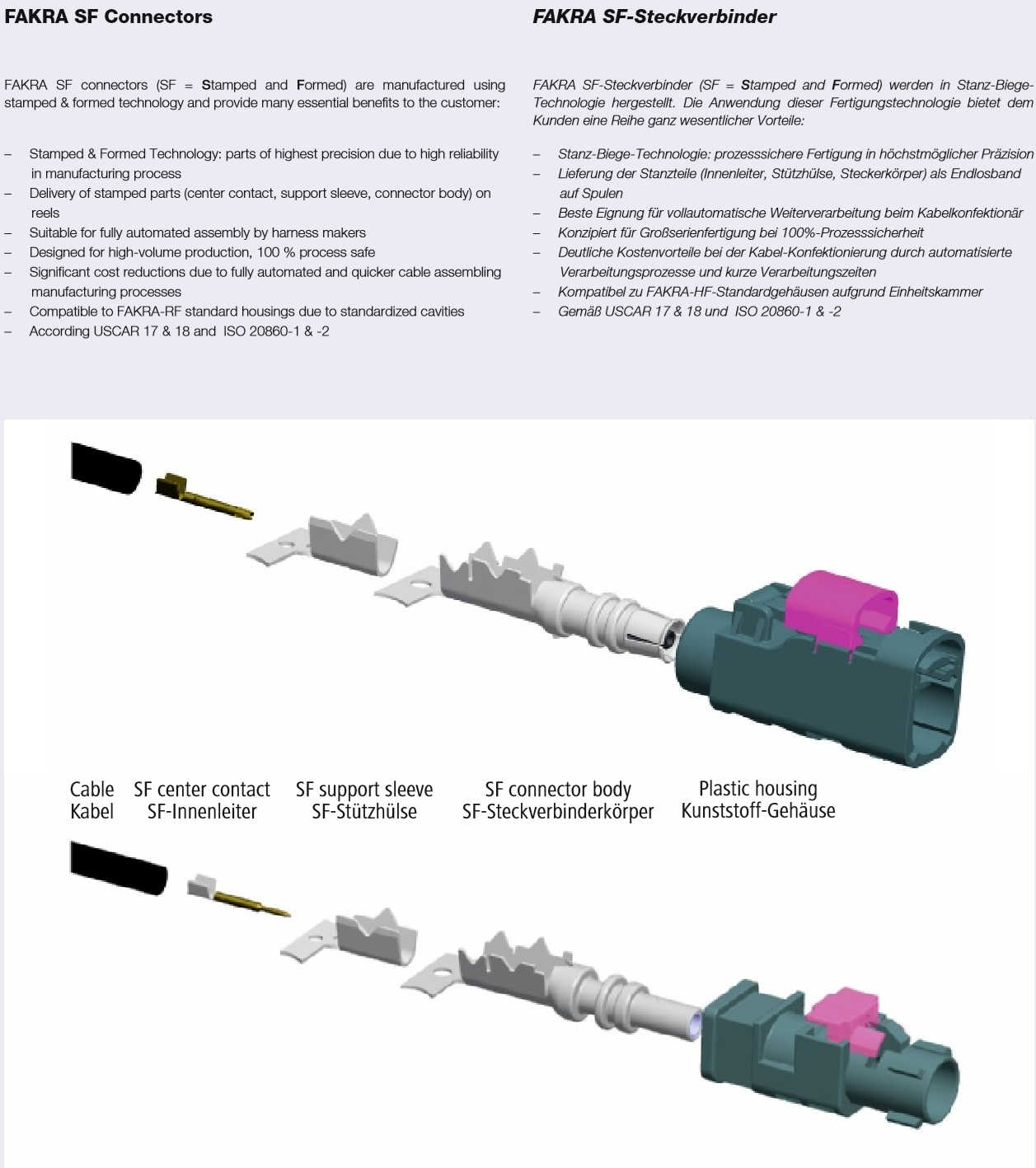

x59 S 10o-101 A4 stamped and formed center contact
RG 178, RG 196
MA 59 V 086 on request 11W150-101 500, 5000, 20000 *
x59 S 10o-102 A4 stamped and formed center contact
RG 174, RG 316
MA 59 V 058 19150008** or 11W161-800***
11W150-302 500, 5000, 20000 *
x59 S 10o-103 A4 stamped and formed center contact
RG 179 B/U-d, 1.5DS
MA 59 V 059 19150008** or 11W161-800***
11W150-302 500, 5000, 20000 *
x59 S 10o-106 A4 stamped and formed center contact
RG 58 MA 59 V 058 19150009** or 11W161-806***
11W150-108 500, 5000, 20000 *
x59 S 10o-1E4 A4 stamped and formed center contact
RG 58-LL, Dacar 037
MA 59 V 058 19150028** or 11W161-8E4
11W150-108 500, 5000, 20000 *
x59 S 10o-1E7 A4 stamped and formed center contact
B-611.87-2.9
MA 59 V 058 60005228** or 11W161-800***
11W150-302 500, 5000, 20000 *
x59 S 10o-1M4 A4 stamped and formed center contact
RTK 031 MA 59 V 058 19150009** or 11W161-8M4***
11W150-104 500, 5000, 20000 *

x59 Z 064-000-y with secondary locking -y: please fill-in requested coding
500
x59 Z 114-000-y with secondary locking -y: please fill-in requested coding
500
x59 Z 074-000-y without secondary locking -y: please fill-in requested coding
500
x59 Z 074-C00-y without secondary locking -y: please fill-in requested coding
400

x59 Z 116-000-y with secondary locking -y: please fill-in requested coding
250
x59 Z 065-000-y without secondary locking -y: please fill-in requested coding
250

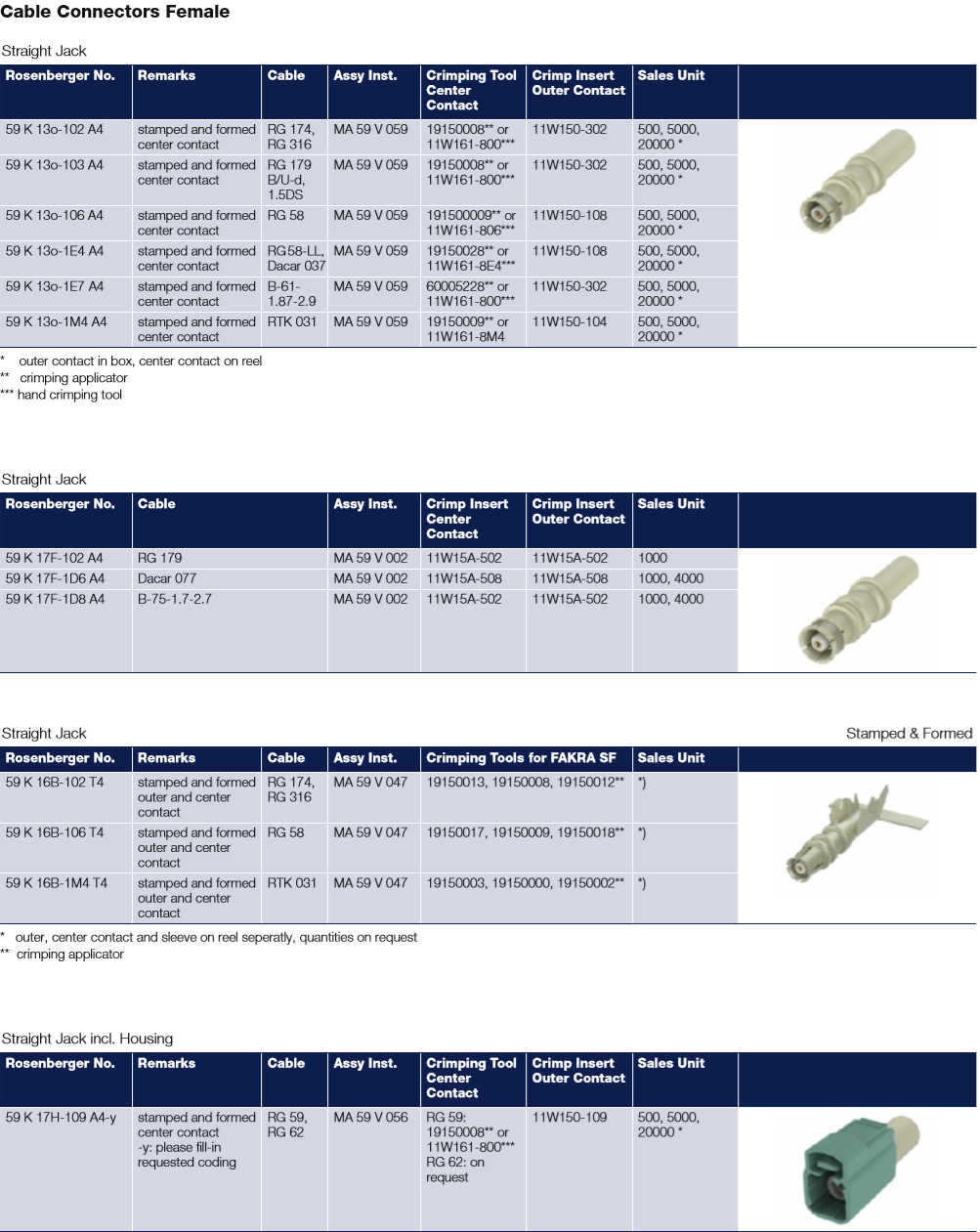

xRosenberger No. Remarks Cable Assy Inst. Crimping Tool Center Contact
Crimp Insert Outer Contact
Sales Unit
x59 K 14B-102 A4 waterproof stamped and formed center contact
RG 174, RG 316
MA 59 V 050 19150008** or 11W161-800***
11W15D-102 500, 5000, 20000 outer contact in box, center contact on reel
x59 K 14B-1M4 A4 waterproof stamped and formed center contact
RTK 031 MA 59 V 050 19150009** or 11W161-8M4***
11W15D-104 500, 5000, 20000 outer contact in box, center contact on reel
